Refit description

Inlet Pump of MP1 covering

  • Date: 05.09.2019 – 09.09.2019
  • Device type: Inlet Pump of MP1 covering
  • Localization: Mondi Świecie S.A.
  • Manufacturer: Sulzer
  • Type: ZPP 51-600

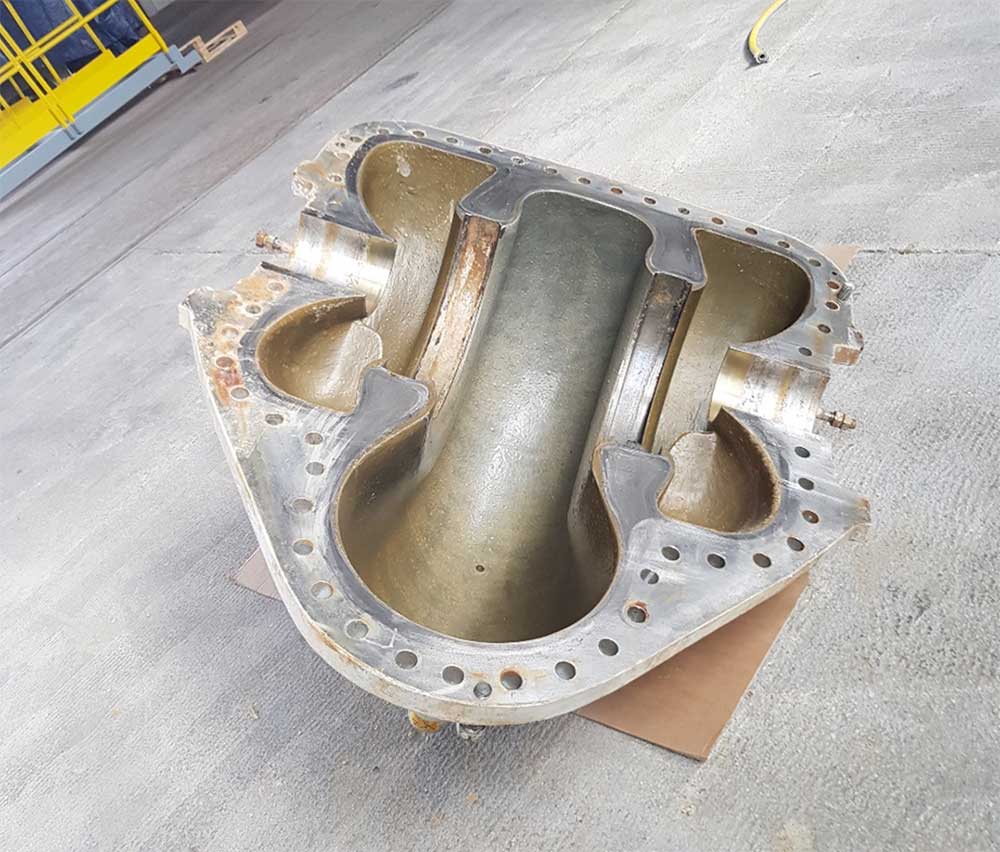

Photo shows pump cover after disassembly.
Pomp cover before renovation. Pomp cover before renovation.

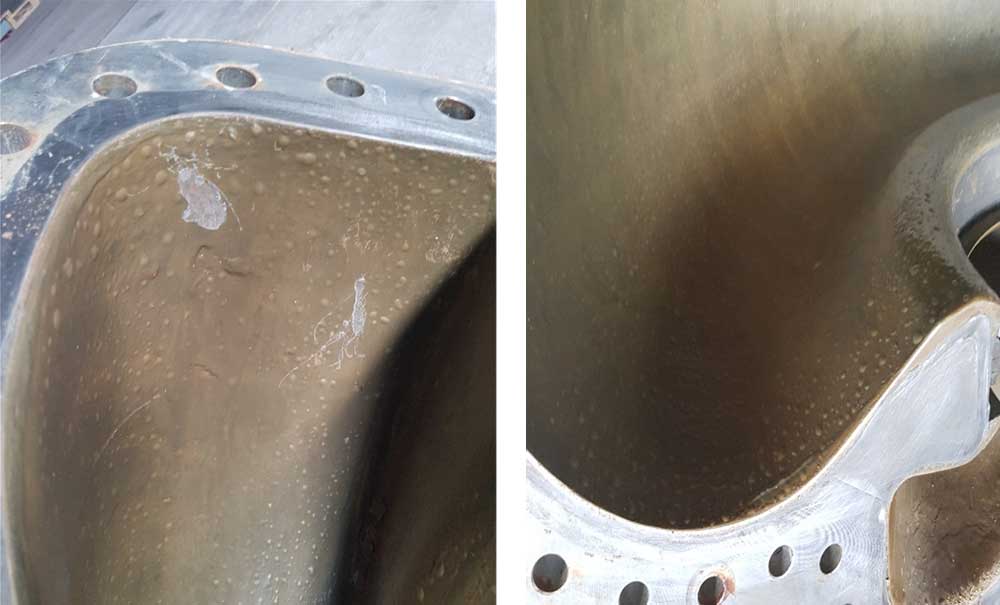

Damage and blisters in the pump cover.
Damage and blisters in the pump cover.

After cover disassembly, damage and bubbles formed during the operation of the MP1 pump were visible. The cavities and blisters visible in the photos were most likely caused by incorrect application of ceramics or preparation of the surface for ceramics by the previous contractor of the refurbishment of this pump.

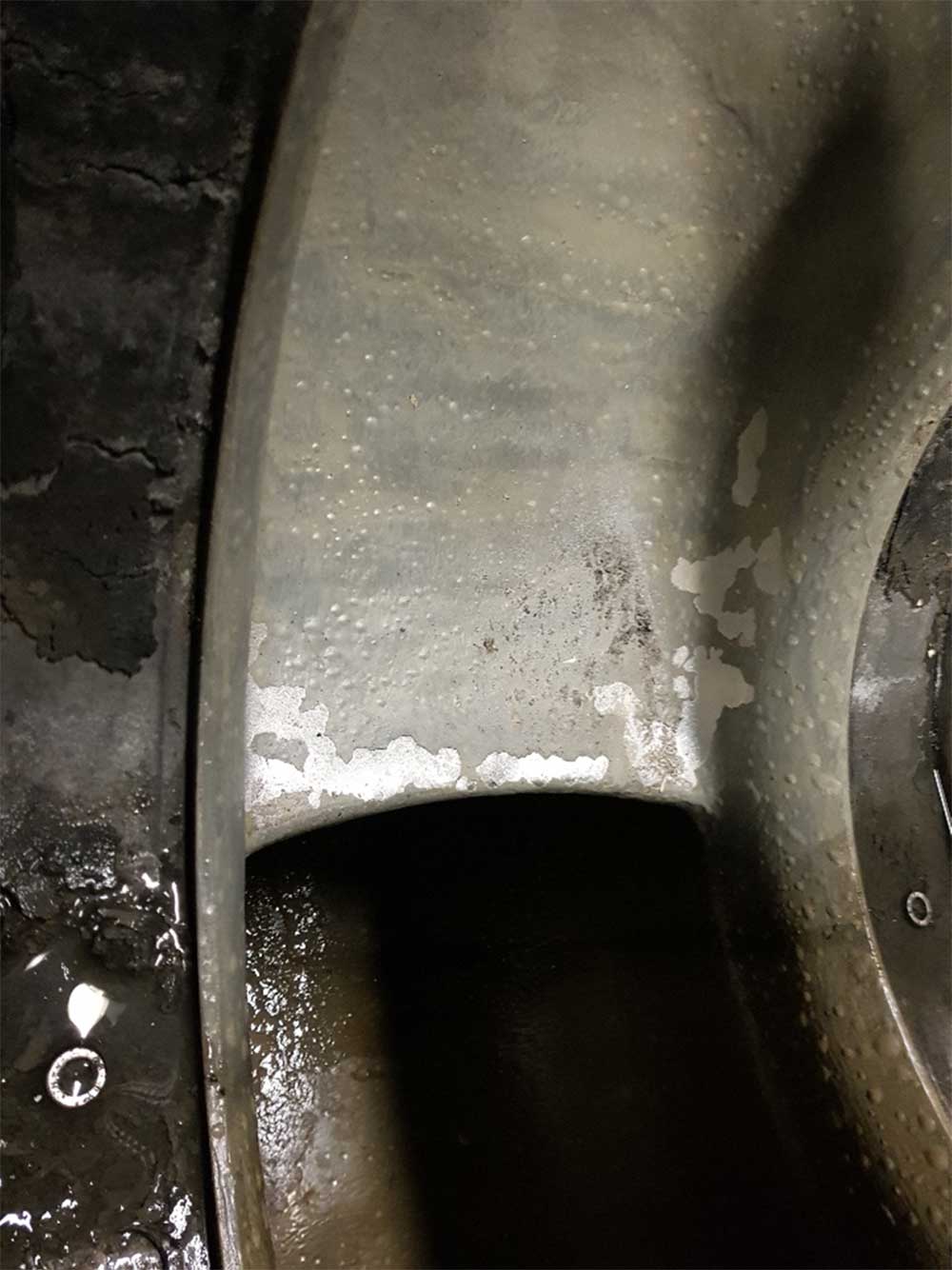

The photo above shows the abrasion of the ceramic surface at the point of the highest mass flow in the lower body of the MP1 pump. This is most likely due to a too thin layer of ceramics applied in this area or, similar to the filler cover, possibly poor surface preparation for ceramics.

Abrasion of the ceramic coating at the point of the highest mass flow in the lower body of the MP1 pump
Abrasion of the ceramic coating at the point of the highest mass flow in the lower body of the MP1 pump

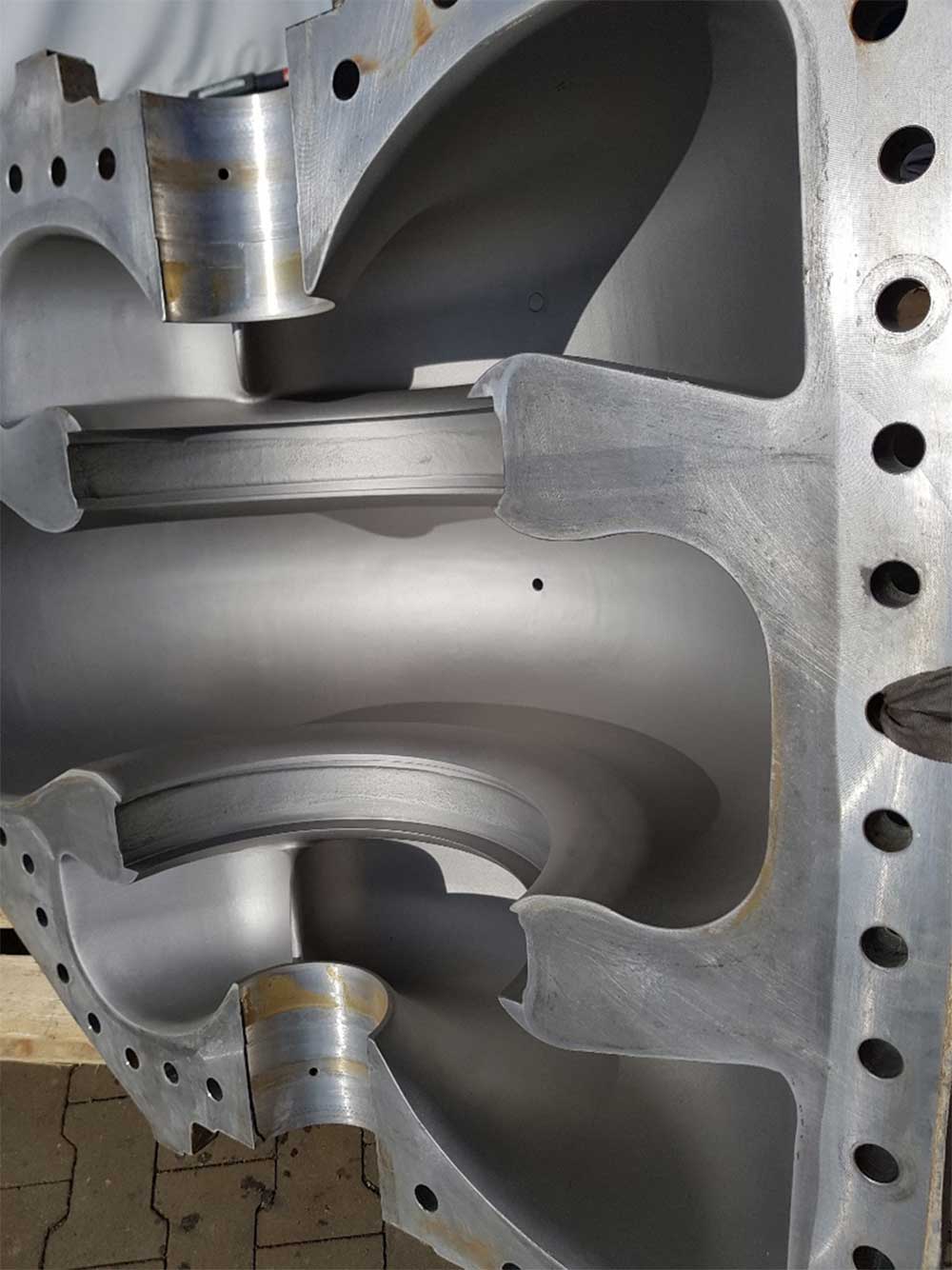

MP1 pump cover after shot blasting
MP1 pump cover after shot blasting

The surface of the pump body cover was thoroughly blasted, then the surface was protected with the F7 degreaser by Chester Molecular


The surface of the MP1 pump body cover was covered with two layers of Chester Molecular ceramics - CF ceramics for the first layer and F ceramics for the second layer. In addition, the surfaces have been polished and the threading on the water connections has been improved.

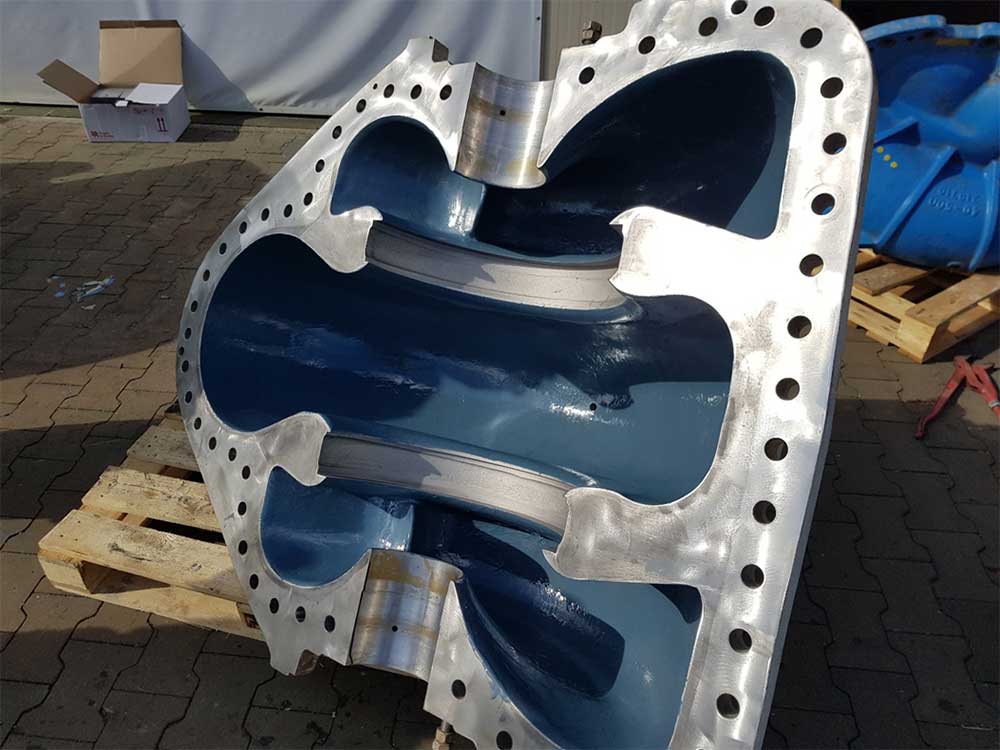

Cover of the MP1 pump after the application of ceramics
Cover of the MP1 pump after the application of ceramics

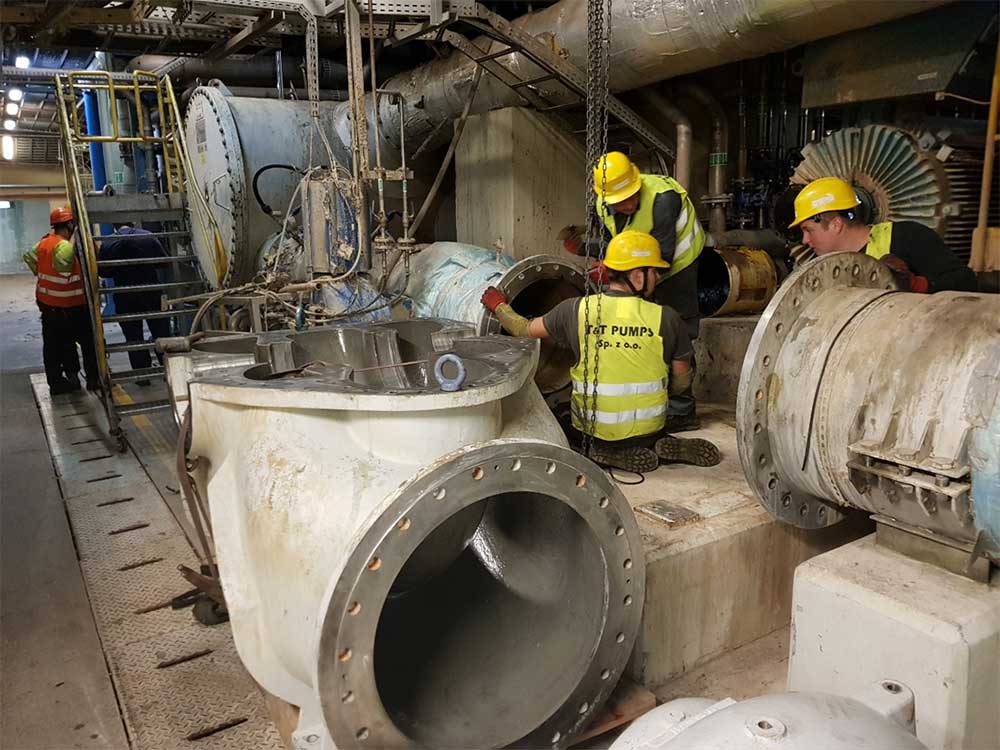

Installation of the MP1 pump lower body
Installation of the MP1 pump lower body

The photo from the assembly of the lower body. As in the case of the filler cover, the lower body was thoroughly blasted, degreased with Chester Molecular F7 agent, then two layers of Chester Molecular ceramics were applied - CF ceramics on the first layer and F ceramics on the second layer. In addition, the surfaces have been sanded and gaskets glued to the flanges.

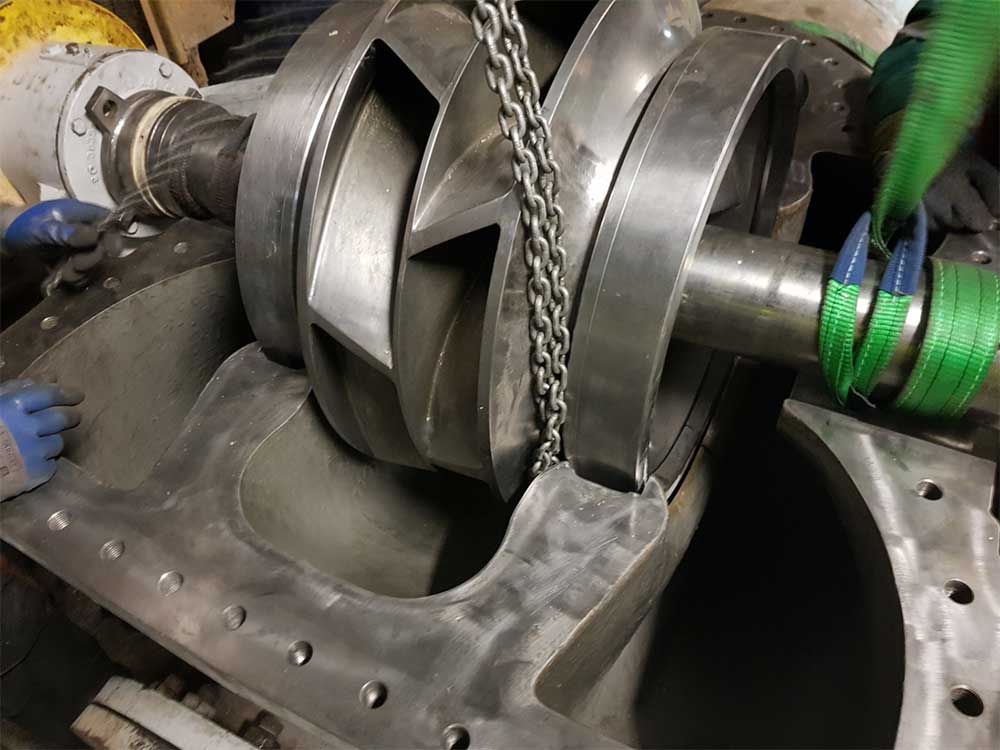

The photo above shows the lower body of the MP1 pump during installation of the rotating assembly. The assembly was performed by the PMP Rolls company.

Installation of the rotating assembly of MP1 pump.
Installation of the rotating assembly of MP1 pump.

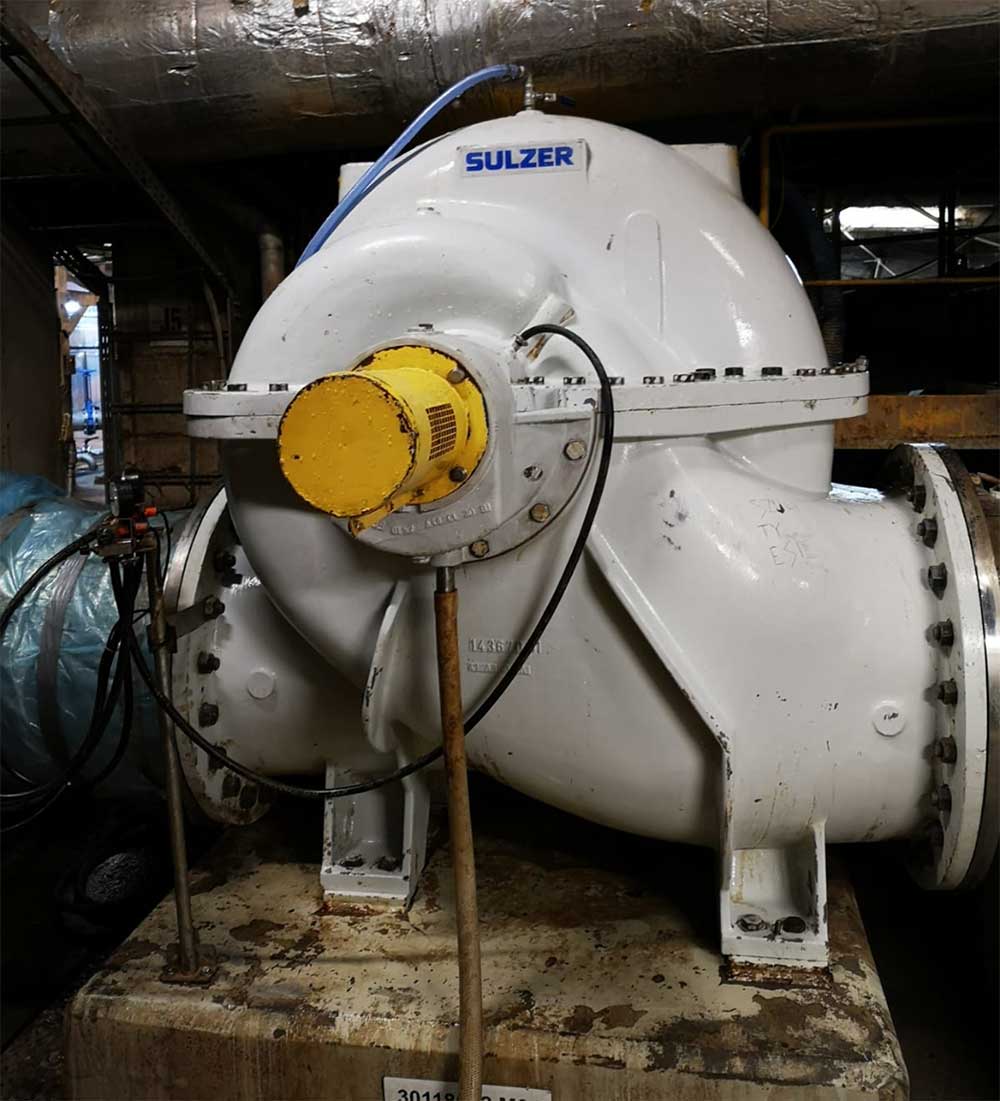

MP1 pump after installation in the final position
MP1 pump after installation in the final position

The photo above shows the MP1 pump after installation on the stand. The pump has been equipped with water systems for seals, protective covers have been installed. In addition, the appearance of the pump has been refreshed by thorough descaling of the body.
